Door closers
GR450
Perfect solution for healthcare facilities, thanks to its delayed closing
- Adjustable delayed closing by grub screw on front: perfect for healthcare facilities
- High opening flexibility thanks to its asymmetric pinion technology
- Latching and closing speed adjustable by grub screw on front
- Adjustable backcheck by grub screw on front
- Relief valve as a standard
- Opening range up to 180° on hinged side
- Invisible fixings hidden by its clipped cover
- Aesthetic, arm without any visible fixing
- Fitting on any type of support (wood, aluminum, PVC)
- Sustainable and continuous adjustments thanks to its thermostable technology
- Optional multiple fittings
- 5 years warranty

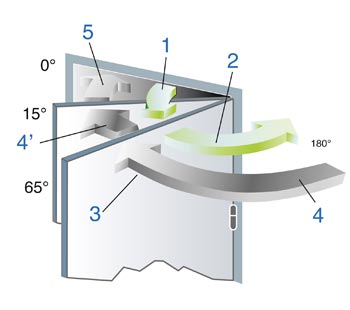

- Zone 1: Regular opening of the door up to 65°
- Zone 2: Adjustable backcheck 65° - 180°
- Zone 3: Adjustable delayed closing 105° - 70°
- Zone 4 et 4’: Adjustable closing speed 180° - 15°
- Zone 5: Adjustable latching 15° - 0°

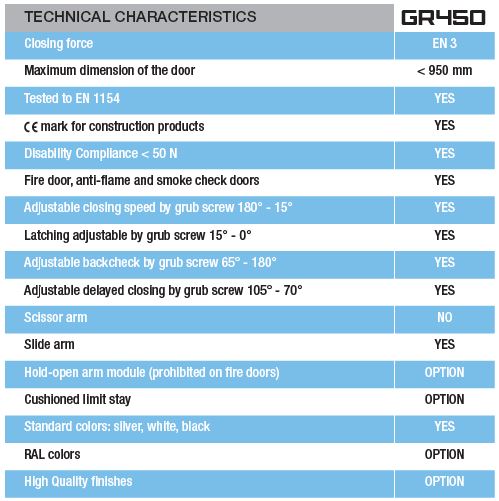

GROOM door closer GR450, with symmetrical rack and pinion technology and slide arm, compliance with EN 1154, CE mark, disability compliance < 50 N.
- Force EN 3 for doors up to 950 mm width and / or 60 kg with an opening angle up to 180°.
- Closing speed and latching adjustments by grub screw on front and hidden under the cover plate.
- Adjustable backcheck by grub screw on front hidden under the cover plate.
- Adjustable delayed closing by grub screw on front hidden under the cover plate.
- Invisible body fixings hidden by its clipped cover.

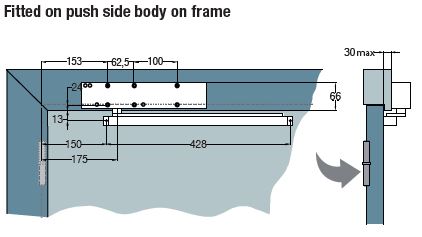

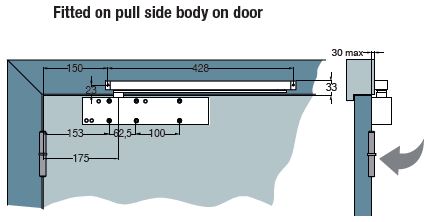

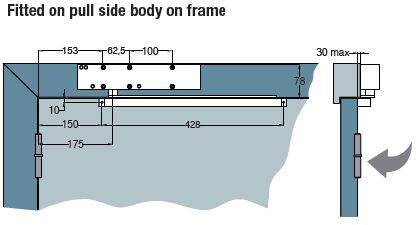

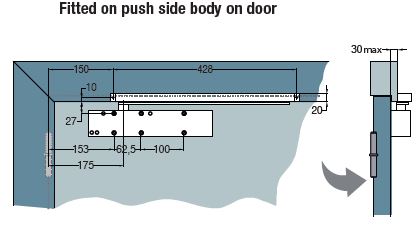

- Pull or push side installation. Reversible, non-handed.
- Thermostable hydraulic from -20° to +40°, equipped with pressure relief valves.
- Silver, white, black, RAL finishes, high quality finishes.

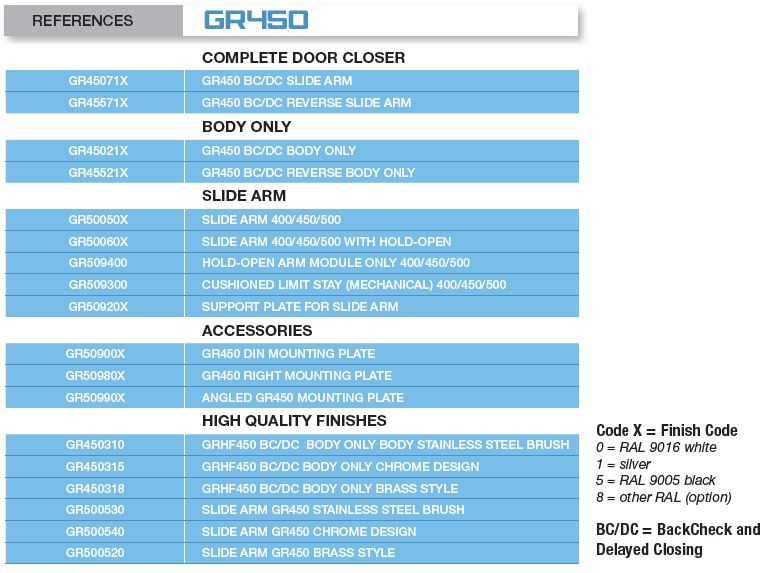

- Accessories: DIN mounting plate for metal profile mounting, hold-open arm module, cushioned limit stay.
